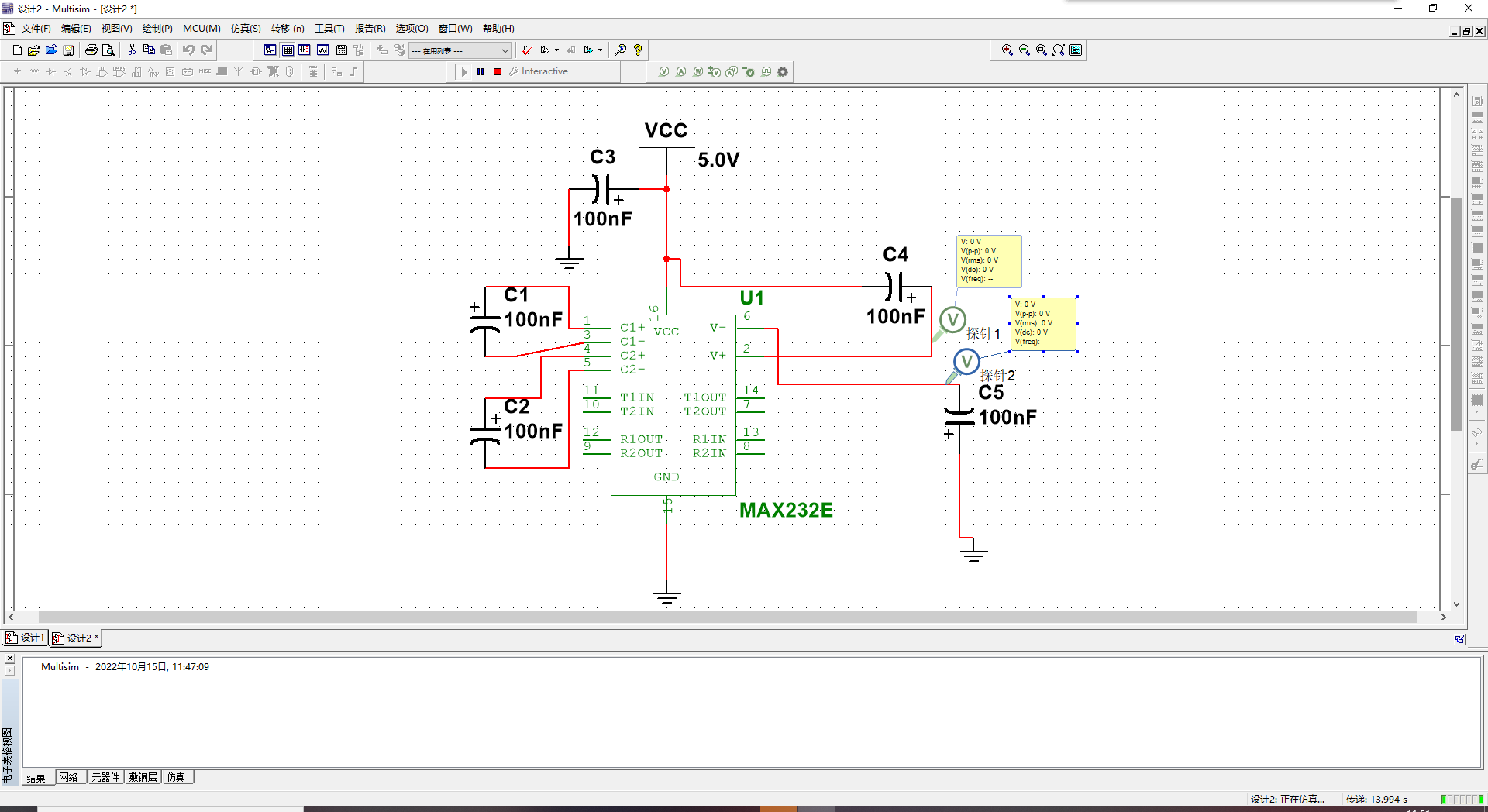

看看手册，我也来仿真看看

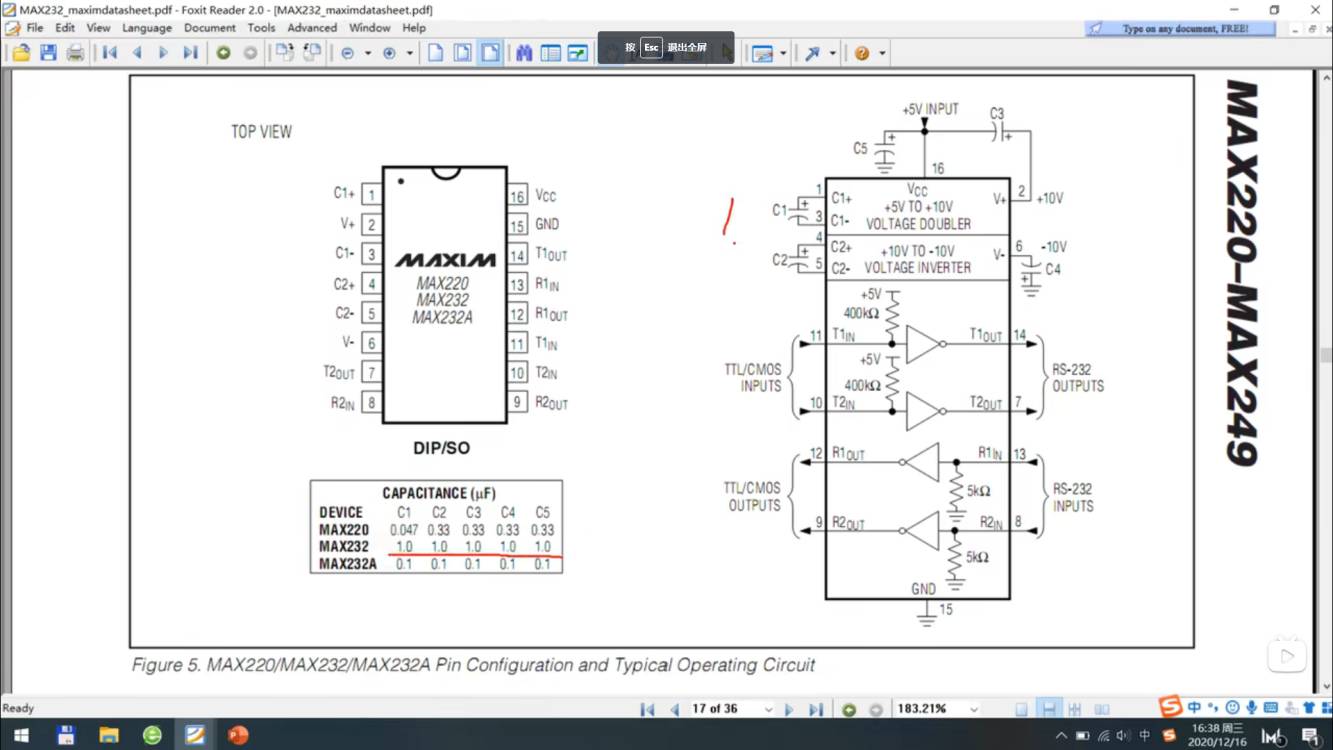

手册元件连接部分，截自教程视频
用1uF电容直接报错，所以我用的是0.1uF

你试过用极性电容连吗？他手册上的是极性电容，你的用了非极性电容。( ﾟw 。)

>>No.52709799
还有这区别吗( ﾟ∀。)7⁾⁾
我试试
先给肥哥嗦牛至了

>>No.52709799
还是不行啊好肥哥( ;´д`)

( ﾟ∀。)7
这个芯片重要的不是下面tin和tout吗？
你只给电源能看出来什么啊

而且你确定电源vcc给到5v了吗

>>No.52712690
vcc是5v
按道理来说上面电荷泵部分这么连以后v+侧是+10v，v-侧是-10v，这个时候才有对信号的处理能力
也接过函数发生器，信号进去了就再没出来过( ´_ゝ`)

Those components do not have simulation models in Multisim. They are there for schematic capture purposes and PCB layout only (for pushing to Ultiboard). You can confirm this when you place the component in the workspace and it shows up as green (which it does).



As a general note, there are three types of components in Multisim, and when you place them in the schematic workspace they show up as a specific colour:



1. Simulation only (BLACK)

2. Footprint only (GREEN)

3. Simulation and Footprint (BLUE)


All three of these component types can be used for schematic capture purposes.
